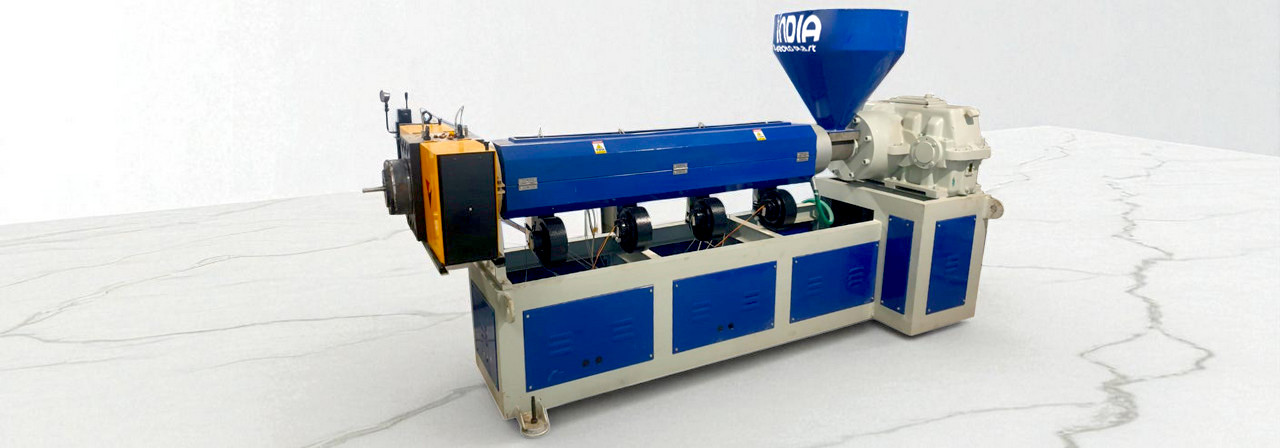

Technical Specifications : Compounding Extruder Machine

MODEL NO. OUT PUT (IN KG/HR) SCREW SIZE (IN MM) EXTRUDER L/D RATIO HEATER ZONE MOTOR H.P.
IRP-EXT-70 70KG/HR 75 MM 24: 1 5 15
IRP-EXT-90 90KG/HR 90 MM 26: 1 5 20
IRP-EXT-100/125 100 – 125KG/HR 100MM 28:1 6 25/30
IRP-EXT-200 200KG/HR 110MM 28:1 6 40
IRP-EXT-250 250KG/HR 125MM 28:1 7 50

Features: Compounding Extruder Machine

  • Good Quality compounding.
  • Air knife for moisture free strands and efficient cooling of the strands and pellets (on request).
  • Cold start protection.
  • Synchronized control for pelletizer to avoid over feed or under feed strand to the pelletizer.
  • Microprocessor based machine Control Panel with Digital Display.
  • Optional Hopper loader (On Request).
  • Optional Die Face Cutter (On Request).
  • Optional Cooling Tower/ Chiller (On Request).
  • Optional PLC (On Request)
